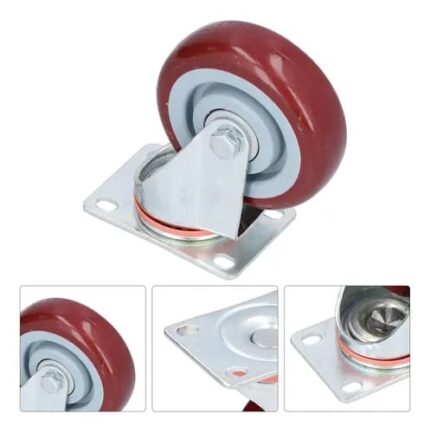

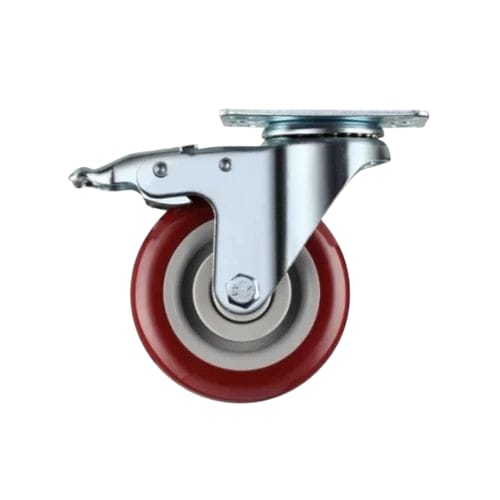

4 Inch Heavy Duty Swivel Caster – Industrial-Grade Material Handling with 400-600 lb Capacity

Industrial Strength Mobility: The 4 Inch Heavy Duty Swivel Caster

When industrial applications demand robust material handling solutions, component quality directly impacts operational efficiency and workplace safety. The 4 inch heavy duty swivel caster delivers professional-grade performance engineered for demanding environments where reliability under load is non-negotiable. Whether outfitting manufacturing equipment, warehouse carts, or heavy machinery dollies, this caster provides the smooth maneuverability and exceptional durability required for continuous industrial use.

The 4 inch heavy duty swivel caster distinguishes itself through substantial load-bearing capability. With a per-caster capacity ranging from 400 to 600 pounds depending on wheel material and configuration, these casters handle serious industrial applications with confidence.

Load Capacity by Configuration:

4 inch heavy duty swivel caster

• Polyurethane wheel: 500-600 lbs per caster – ideal for general industrial use with floor protection.

• Phenolic wheel: 600-700 lbs per caster – maximum load capacity for heavy machinery.

• Rubber wheel: 400-500 lbs per caster – shock-absorbing option for sensitive loads.

• Steel or cast iron wheel: 800+ lbs per caster – extreme-duty applications where floor protection is secondary.

For a typical four-caster platform, this translates to working load capacities of 1,600 to 2,400 pounds, sufficient for moving substantial equipment, materials, and machinery throughout industrial facilities.

Precision Swivel Technology for Superior Maneuverability

The hallmark of any quality swivel caster is its ability to change direction smoothly under load. This 4 inch heavy duty swivel caster incorporates advanced raceway engineering to ensure effortless steering even when supporting maximum rated loads.

Raceway Construction:

• Double ball bearing design: Two precision-ground raceways distribute load evenly and reduce friction.

• Heat-treated components: Critical wear surfaces undergo heat treatment for extended service life.

• Zinc-plated finish: Corrosion-resistant coating protects against moisture and chemicals.

• Full-hardened raceways: Brinelling resistance prevents raceway deformation under impact loads.

• Zerk grease fitting: Maintenance-friendly lubrication point extends bearing life.

• 360-degree rotation: Complete maneuverability in tight spaces.

This sophisticated swivel mechanism provides 360-degree rotation with minimal resistance, allowing operators to navigate tight aisles and position equipment precisely without excessive effort. The swivel radius ensures predictable tracking and stability during movement.

Premium Wheel Material Options

The 4 inch heavy duty swivel caster is available in multiple wheel materials to match specific application requirements:

Polyurethane on Cast Iron Core:
The premium choice for most industrial applications, polyurethane wheels combine the floor protection of rubber with the durability of hard wheels. The tread provides excellent load-bearing capacity while the non-marking compound protects finished floors. The cast iron core ensures rigidity under load, while the polyurethane tread absorbs shock and reduces noise. These wheels resist cutting, oil, and many chemicals, making them ideal for manufacturing environments.

Phenolic Resin Wheels:
For maximum load capacity in a compact diameter, phenolic wheels deliver exceptional performance. These wheels resist water, oil, grease, and many solvents while maintaining structural integrity under heavy loads. The smooth tread reduces rolling resistance, making them suitable for hand-towed applications despite their high capacity.

Molded Rubber Wheels:
When shock absorption and floor protection are primary concerns, rubber wheels provide a cushioned ride. The tread compound absorbs vibration and impact, protecting sensitive payloads and reducing noise. The trade-off is lower load capacity and increased rolling resistance compared to harder materials.

Steel and Cast Iron Wheels:
For extreme-duty applications where floor protection is not a concern, steel and cast iron wheels offer the highest possible load capacities. These wheels withstand high temperatures and resist cutting from sharp debris but will mark and potentially damage finished floors.

Specifications

Robust Mounting Options

The 4 inch heavy duty swivel caster accommodates various mounting configurations to integrate seamlessly with existing equipment:

Top Plate Mount:
The most common configuration, featuring a 4″ x 4-1/2″ or 3-5/8″ x 5-1/2″ mounting plate with four bolt holes. This pattern matches standard industrial caster mounting specifications, simplifying replacement and new installation.

Threaded Stem Mount:
Available in 1/2″-13 and 5/8″-11 thread sizes with various stem lengths for equipment requiring stem mounting.

Expanding Adapter Stem:
For tubular equipment, expanding stem designs create secure friction fit inside square or round tubing without drilling or welding.

The mounting hardware is zinc-plated for corrosion resistance and includes all necessary components for secure installation.

Industrial Applications

The 4 inch heavy duty swivel caster serves countless applications across industries:

Manufacturing:

• Assembly line carts and workstations.

• Heavy equipment dollies.

• Material handling platforms.

• Machine moving skates.

• Tool and die carts.

• Work-in-progress staging.

Warehousing and Distribution:

• Pallet dollies and skids.

• Order picking carts.

• Platform trucks.

• Dock equipment.

• Maintenance carts.

• Heavy load transport.

Aerospace and Automotive:

• Engine stand bases.

• Component transport carts.

• Maintenance platforms.

• Tool crib carts.

• Heavy parts dollies.

• Assembly line fixtures.

Institutional:

• Hospital equipment bases.

• Library book trucks.

• Food service equipment.

• Janitorial carts.

• Stage and event equipment.

• Laundry and linen carts.

FAQ: Your Questions Answered

What is the mounting height of this caster?

The 4 inch heavy duty swivel caster typically features a mounting height of 5-1/2 inches, measured from the mounting surface to the bottom of the wheel. This dimension is critical when replacing existing casters to ensure proper equipment clearance and level operation. Always verify your required mounting height before ordering.

How do I choose the right wheel material for my application?

Selection depends on your specific requirements:

• Polyurethane: Best all-around choice for industrial environments with finished floors. Provides floor protection, good load capacity, and chemical resistance.

• Phenolic: Choose for maximum load capacity in clean, dry environments where floor marking is acceptable.

• Rubber: Select when shock absorption and noise reduction are priorities, such as moving sensitive electronic equipment.

• Steel/Cast iron: For extreme heat, sharp debris, or maximum load applications where floor protection is secondary.

• High-temperature: Specialized wheels are available for oven and kiln applications up to 600°F.

Are these casters suitable for outdoor use?

The zinc-plated finish provides good corrosion resistance for covered outdoor areas. For continuous outdoor exposure, consider stainless steel or sealed bearing options. Polyurethane and phenolic wheels perform well in outdoor temperatures, though direct sunlight may degrade rubber wheels over time. For frequent outdoor use over rough surfaces, larger diameter wheels may provide better performance.

What is the swivel radius and how does it affect maneuverability?

The swivel radius—the distance from the vertical kingpin to the wheel’s center—determines how the caster responds to directional changes. This caster features a swivel radius of approximately 3-1/2 to 4 inches. A smaller radius provides quicker response but may feel less stable at speed; a larger radius offers stability but requires more space to change direction. The 4-inch size strikes an excellent balance for most industrial applications.

How do I maintain these casters for maximum service life?

Regular maintenance significantly extends caster life:

• Lubricate swivel raceways through zerk fittings every 3-6 months or more frequently in dirty environments.

• Keep wheels and raceways clean of debris, string, and tangled materials.

• Periodically check bolt torque and tighten as needed.

• Inspect wheels for wear and replace when tread shows significant wear patterns.

• Check for smooth rotation and address any binding immediately.

• Verify that all casters are contacting the floor evenly; adjust or shim as needed.

What is the temperature range for these casters?

Temperature range varies by wheel material:

• Polyurethane: -20°F to 180°F standard; high-temperature formulations available.

• Phenolic: -40°F to 250°F standard.

• Rubber: -40°F to 160°F typically.

• Steel/Cast iron: -40°F to 500°F+ depending on bearing type.

Consult manufacturer specifications for extreme temperature applications.

Can I mix swivel and rigid casters on the same equipment?

Yes, this is standard practice. Most industrial carts and equipment use two swivel casters (for steering) and two rigid casters (for tracking). The swivel casters allow directional changes while the rigid casters maintain straight-line stability. For maneuverability in tight spaces, four swivel casters may be used.

How do I calculate total load capacity for my equipment?

For equipment with four casters, total capacity = per-caster rating × number of casters × safety factor. A typical safety factor for dynamic loads is 70-80% of theoretical capacity. For example, four 500 lb casters × 0.7 safety factor = 1,400 lb working capacity. This accounts for uneven weight distribution and dynamic forces during movement.

The Professional Choice for Heavy-Duty Applications

When industrial operations demand reliable material handling components, the 4 inch heavy duty swivel caster delivers the performance and durability required for continuous use. With substantial load capacity, smooth swivel action, and multiple wheel material options, these casters provide versatile solutions for the most demanding applications. Whether upgrading existing equipment or specifying components for new projects, these casters offer the quality and reliability that industrial environments require
