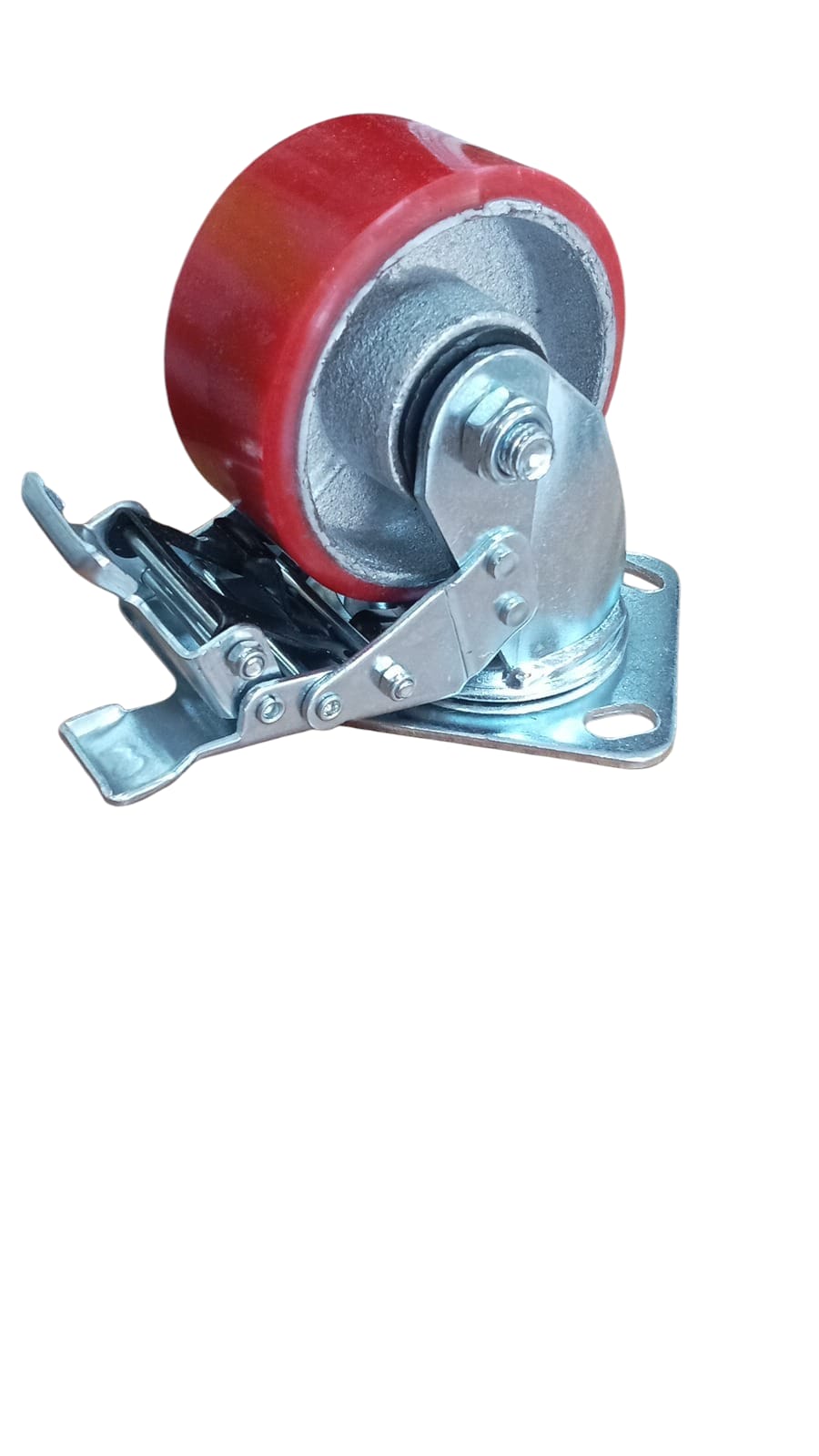

4 inch industrial castor wheel with brakes

Product Description

The 4 inch industrial caster wheel with brake is a heavy-duty mobility solution. It provides both smooth rolling performance and secure stationary positioning for carts, equipment, and machinery in demanding environments.

This caster features a robust swivel mechanism, durable wheel materials, and an integrated braking system. The brake locks the wheel in place, preventing unwanted movement during loading, unloading, or stationary operation.

Available in multiple wheel materials, each caster offers unique advantages. These are tailored to specific floor surfaces, load requirements, and operating conditions.

Whether upgrading workshop carts or building custom equipment stands, this caster delivers the strength and safety features required for professional use.

4 inch industrial castor wheel with brakes

What Types of Brake Systems Are Available?

Understanding brake options is essential for selecting the right caster. Two primary brake configurations are available.

Top Lock Brake (Wheel Lock Only):
This brake system places a positive locking force directly against the wheel tread. It locks only the wheel while allowing the swivel mechanism to continue rotating.

This brake is ideal for applications where directional positioning flexibility is needed even when the wheel is locked. It is common on carts that need to remain in place but may require swiveling for repositioning.

4 inch industrial castor wheel with brakes

Total Lock Brake (Wheel and Swivel Lock):
This advanced brake system simultaneously locks both the wheel rotation and the swivel mechanism. It creates a completely stationary position.

A caster with total lock capability is ideal for applications requiring absolute stability. Examples include workstations, machinery stands, or equipment that must not shift or rotate during use.

What Wheel Materials Are Available and What Are Their Benefits?

The 4 inch industrial caster wheel with brake comes in several material configurations. Each is suited for specific applications.

Polyurethane:
These casters support 350 to 700 lbs. They are best for finished floors and warehouses. Key features include non-marking wheels, quiet operation, and excellent floor protection.

Thermoplastic Rubber (TPR):
These casters support 250 to 300 lbs. They are ideal for light to medium duty carts. Key features include non-marking wheels, shock absorption, and quiet rolling.

Phenolic Resin:
These casters support 450 lbs. They are best for spark-proof environments. Key features include water, oil, and grease resistance, spark-proof construction, and impact resistance.

Solid Polyurethane:
These casters support 700 lbs. They are ideal for heavy-duty industrial use. Key features include no flat-spotting, roller bearings, and extreme durability.

How Much Weight Can a 4 Inch Industrial Caster Wheel with Brake Support?

Load capacity varies significantly by wheel material and construction. The caster offers capacities ranging from light-duty to heavy-duty.

For light to medium duty, thermoplastic rubber and standard polyurethane wheels support 250 to 350 lbs per caster. They are suitable for shop carts, tool boxes, and light equipment stands.

For medium to heavy duty, phenolic and solid polyurethane wheels offer 450 to 700 lbs capacity per caster. They are ideal for platform trucks, warehouse carts, and industrial equipment.

For extreme heavy duty, premium industrial casters can support up to 1,210 lbs per caster. They are suitable for the most demanding industrial applications.

For safe operation, calculate the total load weight. Divide by the number of casters, typically four. Add a 25-30% safety margin above your calculated load per caster.

4 inch industrial castor wheel with brakes

What Are the Standard Mounting Configurations?

The caster is available in several mounting styles to suit different equipment designs.

Top Plate Mount:
This is the most common configuration. It features a rectangular mounting plate with pre-drilled bolt holes.

Threaded Stem Mount:
This is available for applications requiring insertion into tubular or pre-threaded equipment legs. This style is common in foodservice and medical equipment.

Swivel vs. Rigid:
Most caster models are swivel casters that rotate 360 degrees for maximum maneuverability. For directional stability, pair swivel casters with rigid casters on the same equipment.

What Are the Key Specifications for Installation?

Proper installation requires attention to critical dimensions. A standard caster typically features specific measurements.

The wheel diameter is 4 inches. The wheel width is 1.25 inches to 2 inches depending on the model. The mounting height is 5-1/8 inches to 5-5/8 inches from the top of the mounting plate to the floor.

The top plate size is commonly 4″ x 4-1/2″. Bolt hole patterns range from 2-5/8″ x 3-5/8″ to 3″ x 3″. Bolt size is typically 3/8″ or 5/16″. Hardware is usually not included.

The bearing type is typically double ball bearing, precision ball bearing, or roller bearing.

Where Should You Use a 4 Inch Industrial Caster Wheel with Brake?

The versatility of this caster makes it suitable for numerous applications.

For warehouse equipment, use it for platform trucks, freight carts, and industrial dollies. For workshop tools, use it for tool carts, welding carts, and workbenches.

For commercial operations, use it for food service carts and hotel housekeeping carts. For industrial manufacturing, use it for drywall carts and assembly line equipment.

For retail and display, use it for mobile shelving and merchandising units. For medical and laboratory settings, use it for hospital carts and mobile workstations.

How Do You Maintain 4 Inch Industrial Caster Wheels with Brakes?

Proper maintenance extends the life of your caster.

Perform regular cleaning. Remove debris, string, wire, or other materials that may wrap around the axle or wheel. These can impair brake function.

Conduct brake inspection. Periodically test the brake mechanism to ensure positive engagement and release. Check for wear on brake components.

Check bearing maintenance. Many industrial casters feature sealed bearings requiring no maintenance. Others have grease fittings for periodic lubrication.

Inspect for wear. Check wheels for flat spots, cracks, or uneven wear patterns. These could affect rolling and braking performance.

Tighten hardware periodically. Vibration can loosen fasteners over time.

4 inch industrial castor wheel with brakes

Consider temperature ratings. Verify that your caster’s temperature rating matches your operating environment. Typical ranges span -50°F to 250°F depending on the wheel material.

Why Choose a Caster with Brake vs. Without?

This is a critical decision based on your application.

A caster with a brake is essential when equipment must remain stationary during use, loading, or unloading. Applications requiring brakes include workbenches, machinery stands, food service carts, and medical equipment. In these cases, safety and stability are paramount.

Casters without brakes are suitable for continuously moving equipment. They also work for applications where stationary positioning is not required.
