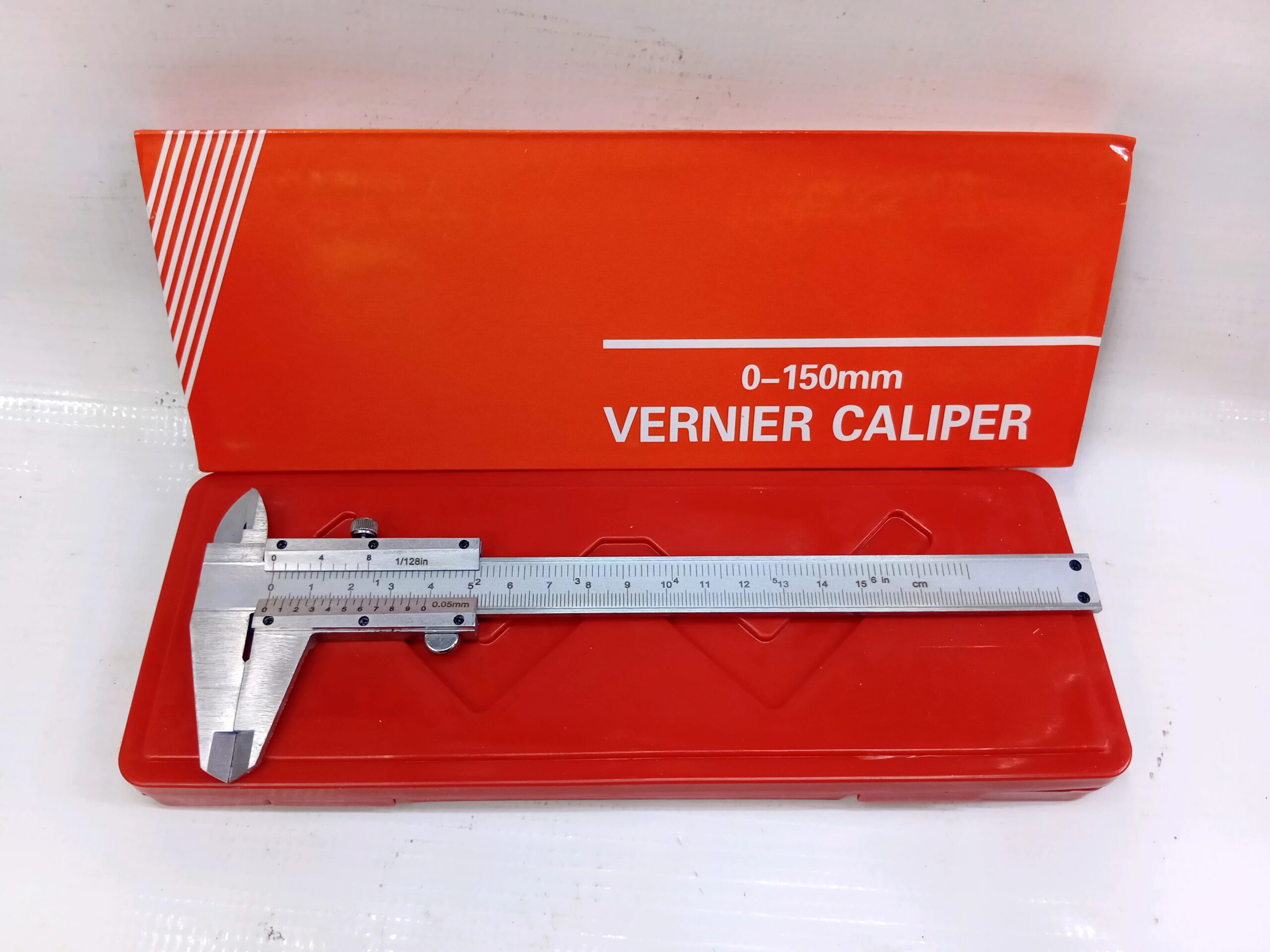

Analog vanier calliper 6″

Product Description

6″ Analog Vernier Caliper: Precision Measurement for Professional Applications

The analog vernier caliper is one of the most fundamental and reliable precision measuring tools. It is essential in engineering, machining, and metalworking.

This 6-inch (150mm) vernier caliper provides accurate measurements. It measures internal dimensions, external dimensions, and depths.

It offers a level of precision that digital tools often cannot match for certain applications. Unlike battery-dependent digital calipers, this analog instrument never needs charging. It is impervious to coolant and oil interference.

Experienced machinists and engineers value its tactile feedback. Whether you are a professional toolmaker, a mechanical engineer, or a dedicated hobbyist, this caliper delivers consistent measurements you can trust.

Analog vanier calliper
6″

Precision-Ground Stainless Steel Construction

The foundation of any quality measuring tool is the material used. This 6″ analog vernier caliper is manufactured from hardened stainless steel.

This material is chosen for its exceptional resistance to corrosion, wear, and temperature variations. The measuring surfaces are precision-ground and lapped. This ensures flatness and parallelism, critical factors that directly impact measurement accuracy.

The main beam and sliding jaw maintain rigidity while keeping the tool lightweight. Unlike cheaper calipers made from carbon steel, stainless steel construction ensures this tool remains accurate through years of professional service.

High-Contrast Scale for Easy Reading

The measuring scale is meticulously engraved or laser-etched for maximum clarity. The main beam features a metric scale with clear, legible markings.

The vernier scale provides the fine resolution needed for precision work. The high-contrast finish reduces glare. This makes the scale easy to read even under harsh workshop lighting.

For metric measurements, the caliper typically offers 0.02mm resolution. This allows measurements to twenty thousandths of a millimeter.

Three-in-One Measuring Capability

Like all vernier calipers, this 6″ model combines three essential measuring functions in a single tool.

• External Measurements: Use the large lower jaws to measure outside dimensions of blocks, shafts, thicknesses, and diameters.

• Internal Measurements: Use the smaller upper jaws to measure inside dimensions of holes, slots, and gaps.

• Depth Measurements: Use the depth rod to measure depths of blind holes, recesses, and steps.



  Analog vanier calliper
  6″

This versatility eliminates the need for multiple specialized tools. The vernier caliper becomes an indispensable all-in-one solution for countless measurement tasks.

Dual-Direction Jaws for Versatile Access

The stepped jaw design provides additional utility in confined spaces. The smaller internal jaws reach into limited-access areas while maintaining measurement accuracy.

Both sets of jaws feature sharp, square edges that ensure positive contact with the workpiece. The sliding jaw moves smoothly along the beam without play. This maintains consistent alignment for reliable readings.

Fine Adjustment Mechanism for Precision Positioning

Achieving accurate measurements requires controlled jaw positioning. This vernier caliper features a thumb-operated fine adjustment roller.

Analog vanier calliper 6″ allows the user to move the sliding jaw incrementally. This makes it easy to achieve the perfect fit against the workpiece. Once the jaws are properly positioned, a locking screw secures the slide.

This allows the user to remove the caliper and read the measurement at their convenience. Analog vanier calliper 6″ feature is valuable when measuring in awkward positions.

Durable Satin Chrome Finish

The satin chrome finish serves both functional and aesthetic purposes. Unlike polished surfaces that create distracting reflections, the satin finish diffuses light.

This makes the engraved scale easier to read without glare. The finish also provides protection against minor scratches and wear. Additionally, the non-reflective surface reduces eye strain during extended measuring sessions.

Absolute Measurement Integrity

For many professionals, the analog vernier caliper remains the preferred tool for critical measurements. It has no electronics to fail, no battery to die, and no digital display to misinterpret.

The reading comes directly from the physical scale. There is no signal processing, no rounding, and no potential for electronic drift. This direct mechanical connection provides confidence that digital tools cannot always match.

In applications requiring absolute certainty, the analog vernier caliper is often the tool of choice.

Essential Applications Across Industries

This 6″ analog vernier caliper serves critical functions across numerous professional settings.

• Machining and Metalworking: Measuring shaft diameters, hole sizes, depths of cuts, and material thicknesses.

• Engineering and Design: Verifying prototype dimensions and checking drawings against physical parts.

• Quality Control and Inspection: Performing incoming inspection, in-process checks, and final verification.

• Tool and Die Making: Precision measurements for mold making, die fabrication, and tooling.

• Woodworking: Measuring joinery, thicknesses of stock, and depths of cuts.

• Education and Training: Teaching fundamental measurement principles in technical schools.

• Automotive Repair: Checking component wear, measuring clearances, and verifying part dimensions.



  Analog vanier calliper
  6″

Durable Protective Case Included

To protect your investment, this vernier caliper comes packaged in a fitted protective case. The case shields the precision-ground measuring surfaces from impacts, moisture, and contamination.

The custom-molded interior holds the caliper securely. Analog vanier calliper 6″ prevents rattling during transport or storage. This case ensures your caliper remains workshop-ready at all times.

Metric Calibration and Accuracy

This 6″ vernier caliper is calibrated in the metric system. Analog vanier calliper 6″ has a measuring range of 0-150mm and a resolution of 0.02mm.

The accuracy is typically specified as ±0.03mm or better across the full measuring range. This assumes proper use and maintenance. For applications requiring imperial measurements, dual-scale models are also available.

The vernier scale requires careful reading. Analog vanier calliper 6″ user identifies which graduation on the vernier scale aligns exactly with a graduation on the main scale. This determines the fractional measurement.

FAQ: Your Questions Answered

What is the difference between a vernier caliper and a digital caliper?

A vernier caliper uses a mechanical scale. Analog vanier calliper 6″user interprets the reading by aligning graduations on the main and vernier scales. A digital caliper displays measurements electronically on an LCD screen.

Vernier calipers never need batteries. They are impervious to coolant and oil. Analog vanier calliper 6″provide the direct mechanical connection that many professionals prefer.

Digital calipers offer faster reading and can switch between units instantly. However, they require battery replacement and can be affected by moisture.

How do I read an analog vernier caliper?

Reading an analog vernier caliper requires a two-step process. First, note the last whole millimeter graduation visible to the left of the vernier scale’s zero mark. This gives you the main measurement.

Then, look along the Analog vanier calliper 6″. Find the graduation that lines up exactly with any graduation on the main scale. The number of that vernier graduation is added to the main measurement.

For example, if the main scale reads 23mm and the 12th vernier graduation aligns, the total measurement is 23.24mm.

What is the accuracy of this 6″ vernier caliper?

This quality Analog vanier calliper 6″  typically provides accuracy of ±0.03mm or better. This applies across its full 150mm measuring range. Analog vanier calliper 6″ resolution is 0.02mm, meaning measurements can be read to twenty thousandths of a millimeter.

Actual accuracy depends on proper use, regular cleaning, and periodic verification against gauge blocks.

How do I maintain my vernier caliper?

Proper maintenance is essential for sustained accuracy. After each use, wipe the caliper clean with a soft, lint-free cloth. Remove oils, coolants, and debris.

Apply a light coat of instrument oil to the measuring surfaces and beam. Analog vanier calliper 6″prevents corrosion. Store the caliper in its protective case when not in use.

Periodically check calibration against a known standard. Avoid dropping the tool or subjecting it to impacts that could distort the beam or jaws.

Can this caliper measure both inside and outside dimensions?

Yes, this vernier caliper is designed for both internal and external measurements. The larger lower jaws are used for external measurements like outside diameters and thicknesses.

The smaller upper jaws are used for internal measurements like hole diameters and slot widths. The depth rod at the end of the beam measures depths of holes and recesses.

What is the measuring range of this tool?

This caliper has a measuring range of 0 to 6 inches (0-150mm). The 150mm size is the most common and versatile length for general workshop use.

It is capable of measuring the majority of components encountered in typical machining, fabrication, and inspection tasks.

Is this tool suitable for use in wet or oily environments?

Yes, the stainless steel construction and fully mechanical operation make this vernier caliper ideal for such environments. Coolants, cutting oils, and water will not affect its accuracy or operation.

This assumes the tool is cleaned and dried after use. Analog  vanier  calliper 6″ makes it particularly valuable in machining and grinding applications.

Analog vanier calliper
6″

What does the “vernier” name mean?

The Analog vanier calliper 6″  is named after its inventor, Pierre Vernier. He was a French mathematician who developed this precise measurement reading system in the 17th century.

The vernier scale is a secondary scale that slides alongside the main scale. It allows measurements to be read with greater precision than the main scale alone could provide. This elegant mechanical solution remains in use today because of its simplicity, reliability, and accuracy.

Add the precision and reliability of this 6″ analog vernier caliper to your workshop today. It is the professional’s choice for measurements you can true
