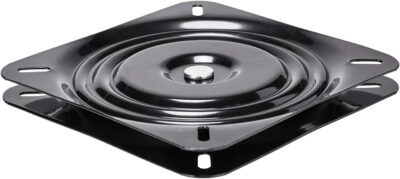

10 inch 360° swivel plate

Product Description

The 10-inch 360° swivel plate caster is a heavy-duty industrial wheel assembly. It provides full rotational mobility for carts, racks, equipment, and material handling systems.

This swivel caster features a top plate mounting configuration and a precision-engineered raceway. This allows the wheel to rotate a full 360 degrees, offering exceptional maneuverability in tight spaces.

Available in multiple wheel material options, the swivel plate caster is suited for applications ranging from lawn and garden carts to industrial cranes and heavy machinery.

Whether you need to equip a warehouse cart or a heavy-duty dolly, this swivel caster delivers reliable performance with load capacities ranging from 300 lbs to an impressive 6,500 lbs per caster.

10 inch 360° swivel plate

What Wheel Material Options Are Available for 10-Inch Swivel Casters?

A common question concerns the different wheel types and their specific applications.

Pneumatic (Air-Filled):
These provide a cushioned ride, shock absorption, sawtooth tread for traction, and quiet operation. Load capacity is 300 to 800 lbs. They are best for lawn and garden carts, wagons, outdoor equipment, and rough surfaces.

Phenolic Resin:
These are impact-resistant, spark-proof, water, oil, and grease resistant, and offer quiet rolling. Load capacity is 2,900 to 3,000 lbs. They are best for cranes, gantries, hoists, industrial carts, and heavy machinery.

Polyurethane (PU):
These are non-marking, floor-protective, and reduce push and pull force. Load capacity is 2,200 to 5,000 lbs. They are best for manufacturing, automotive assembly, food processing, and retail displays.

Flat-Free / Solid Rubber:
These are puncture-proof, maintenance-free, and have a durable tread. Load capacity is 360 lbs. They are best for material handling and general industrial use.

Nylon:
These are hard, non-marking, with high load capacity and low rolling resistance. Load capacity is 6,500 lbs. They are best for extreme heavy-duty industrial and aerospace tooling.

What Is the Difference Between Standard and Kingpinless Swivel Casters?

This is a critical distinction when selecting a swivel plate caster.

Standard swivel casters feature a traditional kingpin design, a central bolt that serves as the pivot point. These are suitable for most general-purpose applications.

Kingpinless swivel casters use a forged steel design with large-diameter ball bearings that absorb thrust and load. This design eliminates kingpin failure due to severe shock loading. These swivel casters are ideal for heavy-duty applications, extreme environments, and applications where impact loading is common.

What Are the Key Dimensions and Mounting Specifications?

The swivel plate caster has varying specifications depending on the model.

10 inch 360° swivel plate

The wheel diameter is 10 inches on all models. Wheel width ranges from 2.5 to 4 inches depending on the model. Mounting height typically ranges from 11.5 to 13 inches.

Plate size varies from 3.75″ x 4.5″ for pneumatic models to larger sizes over 7″ for heavy-duty industrial models. Bolt hole patterns and bolt sizes vary accordingly. The mounting plate features 4 pre-drilled holes for secure attachment to your equipment. Hardware is not typically included.

What Brake Options Are Available on 10-Inch Swivel Casters?

Some swivel plate casters are available with integrated braking systems.

Side locking brake engages directly against the wheel to prevent rolling motion at the desired location. 4-position directional lock locks the swivel mechanism in place for straight-line movement only. Total lock simultaneously locks both wheel rotation and swivel action.

How Do You Install a 10-Inch Swivel Plate Caster?

Installation requires basic tools and attention to mounting specifications.

First, position the top plate against the bottom or side of your equipment. Second, use the pre-drilled mounting holes as a template to mark bolt positions.

Third, pre-drill pilot holes if mounting to wood. Use appropriate bolts for metal surfaces. Fourth, secure the caster using bolts. Hardware is not included.

Finally, ensure all bolts are tightened securely and the caster swivels freely.

10 inch 360° swivel plate

For maximum load capacity and stability, install four casters on equipment. Typically use two swivel casters on the front and two rigid casters on the rear, or four swivel casters for full maneuverability.

Where Should You Use a 10-Inch 360° Swivel Plate Caster?

The versatility of this swivel caster makes it suitable for numerous applications.

For warehouse and material handling, use it on platform trucks, freight carts, storage racks, and drywall carts. For industrial and manufacturing, use it on cranes, gantries, hoists, winches, assembly lines, and welding carts.

For outdoor and garden, use it on lawn carts, utility wagons, and garden equipment. For automotive and aerospace, use it on body dollies, engine stands, chassis carts, and aerospace tooling.

For commercial and retail, use it on store displays, food service carts, and mobile shelving.

10 inch 360° swivel plate

What Is the Temperature Range for These Casters?

The operating temperature range varies by wheel material.

Polyurethane and phenolic casters typically operate from -40°F to 200°F. Pneumatic casters should be used in moderate temperature ranges and are not recommended for extreme heat or cold.

Always verify temperature ratings with the manufacturer for your specific application.
