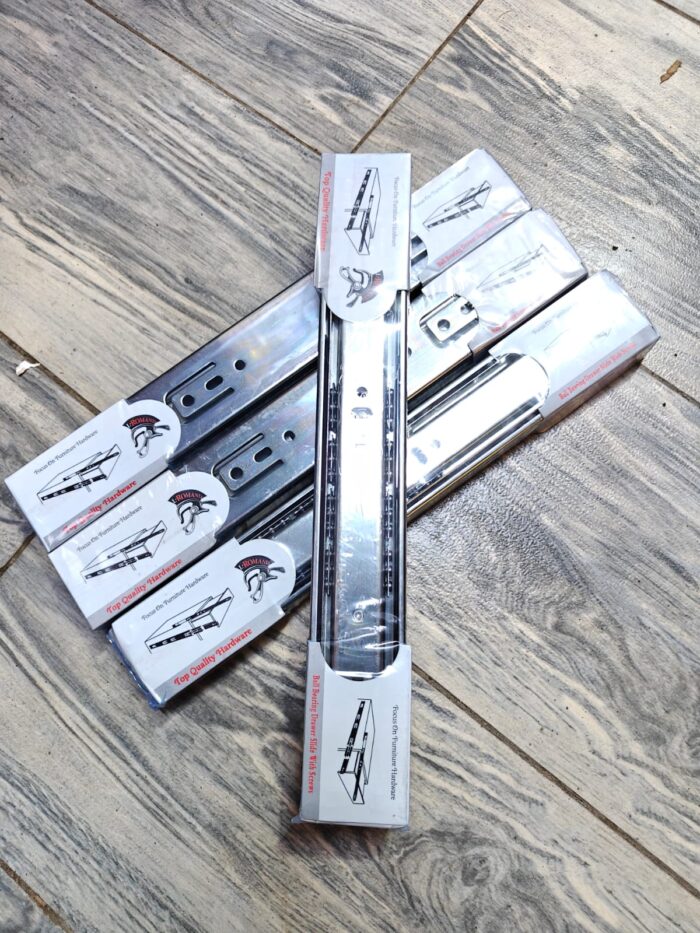

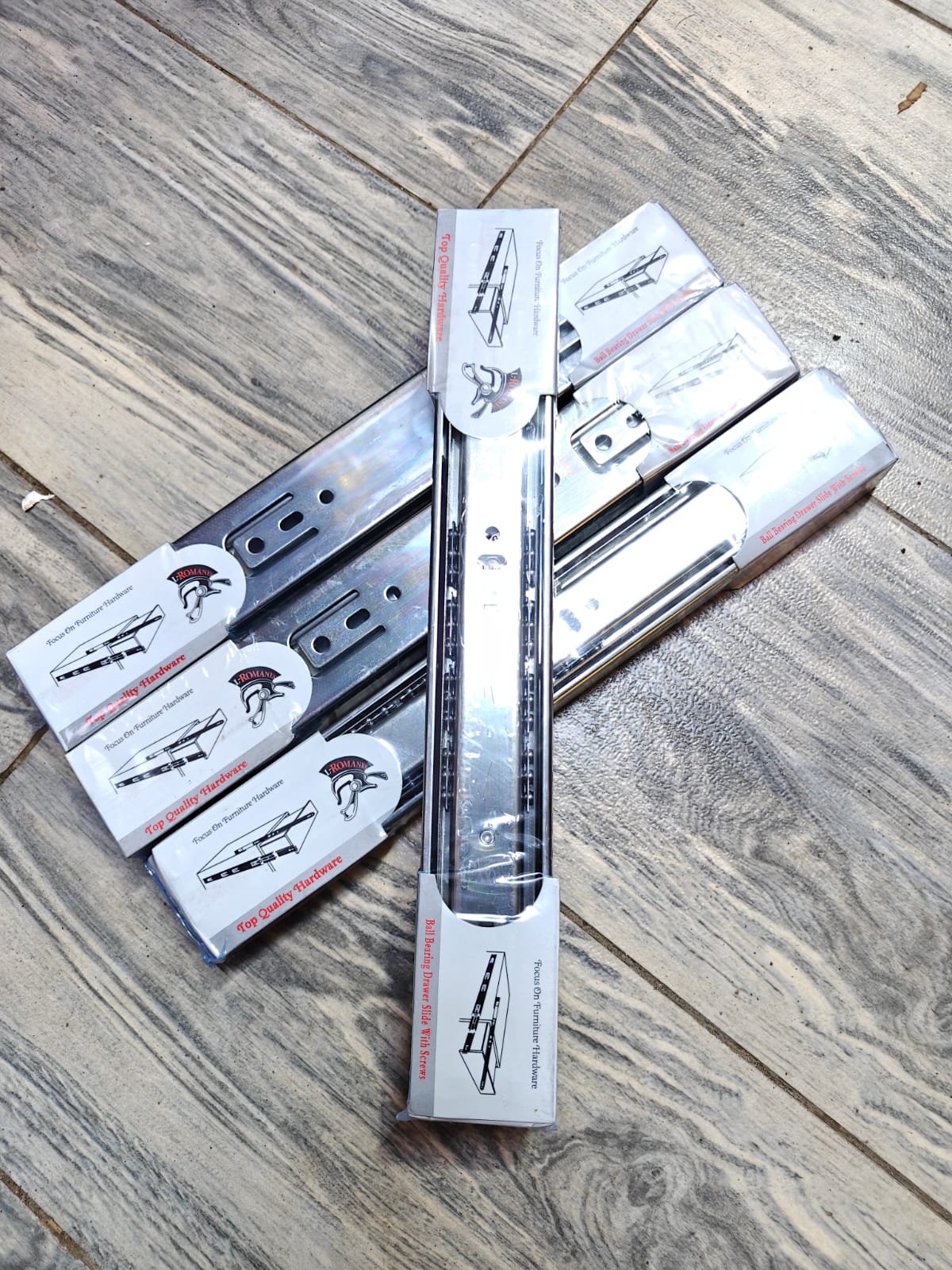

12 inch full extension drawer rail

Product Description

A 12 inch full extension drawer slide is a precision hardware component. It allows a drawer to extend completely out of its cabinet, providing unobstructed access to the entire drawer contents.

Unlike standard slides that leave the rear portion of the drawer hidden, this drawer slide ensures that every item is easily reachable without awkward reaching or tipping.

Whether repairing a kitchen drawer or building a custom tool chest, the 12 inch full extension drawer slide is the perfect choice for maximizing accessibility in standard-depth cabinetry.

What Installation Types Are Available for 12 Inch Full Extension Drawer Slides?

A common question concerns which installation method is best for different applications.

12 inch full extension drawer rail

Side Mount:
Load capacity is 100 to 150 lbs. Best for heavy-duty applications, tool boxes, and kitchen drawers. Key features include visible hardware, robust construction, and easy installation.

Undermount (Concealed):
Load capacity is 75 to 100 lbs. Best for high-end cabinetry and frameless cabinets. Key features include hidden hardware when drawer is open, soft-close feature, and clean aesthetic.

Bottom Mount (Euro):
Load capacity is 75 lbs. Best for light to medium duty and quick installation. Key features include mounting beneath the drawer and self-closing mechanism.

What Are the Key Specifications for 12 Inch Drawer Slides?

The drawer slide is engineered for smooth, reliable operation. Quality slides feature ball-bearing mechanisms and are constructed from heavy-duty cold-rolled steel.

For side mount specifications, the slide length is 12 inches. Recommended drawer length is 12.5 inches. Profile height is 45mm. Required side clearance is 0.5 inch per side. Minimum cabinet depth is 12 inches.

For undermount specifications, the slide length is 12.38 inches. Full extension travel is 22.125 inches from closed position. Height is very low profile.

What Are the Load Capacity Options for 12 Inch Drawer Slides?

Load capacity varies by slide type and construction quality.

Side mount slides from some brands support 150 lbs with a zinc finish. They feature Grade 1 BHMA certification and lever disconnect.

Other side mount slides support 100 lbs with a zinc finish. They feature push-to-open and Grade 1 BHMA certification.

Side mount slides with soft-close support 100 lbs with a black finish. They offer self-closing and silent operation.

Undermount slides support 100 lbs with a galvanized finish. They are concealed with soft-close and Grade 1 BHMA certification.

Bottom mount slides support 75 lbs with a silver finish. They are self-closing Euro slide designs.

12 inch full extension drawer rail

Side mount slides with flex tabs support 100 lbs with a clear zinc finish. They feature flex tabs for face frame cabinets and lever disconnect.

What Special Features Are Available on 12 Inch Full Extension Slides?

Quality drawer slides incorporate various features for enhanced functionality.

Soft-close mechanism uses hydraulic dampers to gently pull the drawer closed. This prevents slamming and ensures silent operation.

Self-closing means the drawer automatically pulls itself shut when pushed near the closed position.

Push-to-open requires a gentle push on the drawer front to engage the mechanism. This extends the slides and opens the drawer without a handle.

Lever disconnect allows for easy removal of the entire drawer system with a simple lever release.

Detent acts like a brake to prevent drawers from bouncing back open when closed with force.

Flex tabs are non-handed design with flex tabs allowing easy mounting for both face frame and frameless cabinets.

How Do You Install a 12 Inch Full Extension Drawer Slide?

Proper installation requires attention to clearance and alignment.

First, measure your drawer. The 12 inch slide is designed for drawer boxes that are approximately 12.5 inches long. Ensure the cabinet depth is at least 12 inches.

Second, check side clearance. For side mount slides, maintain a 0.5 inch gap between the drawer and the cabinet side wall on each side.

Third, follow the 3-part separation. Most 12 inch slides feature a 3-fold telescopic design. Install the outer member on the cabinet and the inner member on the drawer. Then slide the drawer onto the rails until the disconnect latch engages.

Fourth, use the standard hole pattern. Many slides feature access to the standard hole pattern for use with European or wood screws.

Fifth, use an installation tip. Create L-shaped drawer supports that clamp to the cabinet front to hold the drawer box securely while you mount the slides. This leaves your hands free for accurate screw placement.

Where Should You Use a 12 Inch Full Extension Drawer Slide?

The drawer slide is ideal for numerous applications.

For kitchen drawers, it is perfect for utensil drawers, spice racks, and standard-depth base cabinet drawers. For tool boxes and workbenches, it provides full access to heavy tools and equipment.

For office furniture, it is ideal for desk drawers and filing cabinets. For bathroom vanities, it fits smaller vanity drawers while maximizing accessibility.

For pull-out shelving, it converts standard shelving into accessible pull-out storage. For retail fixtures, it is excellent for business and store fixturing applications.

What Certification and Warranty Information Is Available?

Quality drawer slides often carry important certifications.

BHMA Grade 1 certification indicates the highest level of durability and performance for ANSI/BHMA standards. Many premium brands offer limited lifetime manufacturer warranties.

High-quality slides are tested to withstand over 50,000 to 100,000 life cycles.
