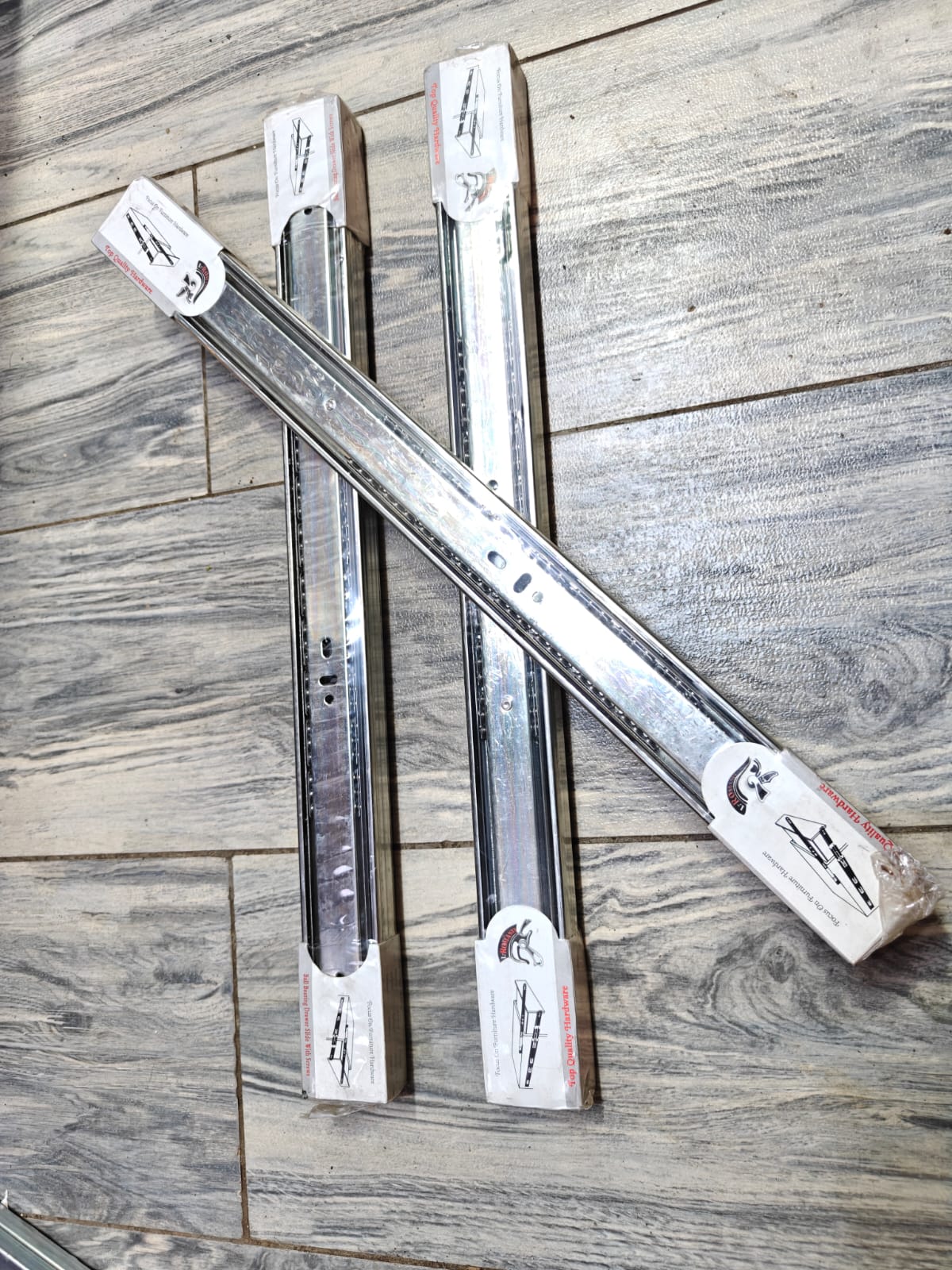

20 inch full extension drawer rail

Product Description

A 20 inch full extension drawer slide is a precision hardware component. It allows a drawer to extend completely out of its cabinet, providing unobstructed access to the entire drawer contents.

Unlike standard slides that leave the rear portion of the drawer hidden, this drawer slide ensures that every item is easily reachable without awkward reaching or tipping.

Whether installing large kitchen drawers or building workshop storage, the 20 inch full extension drawer slide is the perfect choice for maximizing accessibility in standard and deep cabinetry.

What Installation Types Are Available for 20 Inch Full Extension Drawer Slides?

A common question concerns which installation method is best for different applications.

Side Mount Slides:
These are mounted on the sides of the drawer and cabinet. They are the most common type, known for their robust weight capacity, ease of installation, and reliability. They are ideal for kitchens, workshops, and general cabinetry.

Undermount (Concealed) Slides:
These are hidden beneath the drawer, offering a cleaner, more seamless look as they are invisible when the drawer is open. They are designed for frameless cabinets and high-end installations. They provide a premium aesthetic and typically include soft-close functionality.

Heavy-Duty Slides:
For extreme load requirements, heavy-duty slides are constructed with thicker cold-rolled steel and can support significantly higher weights. They feature high load capacity, three-section full extension, and a corrosion-resistant finish with ball-bearing action for smooth, quiet operation.

What Are the Key Specifications for 20 Inch Drawer Slides?

The drawer slide is engineered for smooth, reliable operation with heavy-duty steel construction. Quality slides feature ball-bearing mechanisms and are built to withstand daily use.

The nominal length is 20 inches. Recommended drawer length is 20.5 inches. Profile height for side mount is approximately 45 to 46 mm. Required side clearance is 0.5 inches per side. Minimum cabinet depth is 20 inches. Extension type is full extension.

Full extension travel for side mount is 20 inches. For undermount, it can be up to approximately 29.75 inches.

What Are the Load Capacity Options for 20 Inch Drawer Slides?

Load capacity varies significantly by slide type, construction quality, and intended use.

Heavy-duty side mount slides support 500 lbs. They feature 3-section full extension, cold-rolled steel, and a zinc-plated finish.

Undermount slides support 125 lbs. They feature nylon rollers, a tilt front mechanism, and a white finish.

Premium side mount slides support 100 lbs. They feature BHMA Grade 1 certification, push-to-open or detent anti-rebound, and lever disconnect.

Commercial undermount slides support 100 lbs. They feature an easy close fluid damper and ADA compliance.

Concealed undermount slides support 88 lbs. They feature soft-close, lever disconnect, and a limited lifetime warranty.

Standard side mount slides support 50 to 99 lbs. They feature self-close and soft-close options, lever disconnect, and stainless steel or zinc-plated finishes.

What Special Features Are Available on 20 Inch Full Extension Slides?

Quality drawer slides incorporate various features for enhanced functionality.

Soft-close mechanism uses hydraulic dampers to gently pull the drawer closed. This prevents slamming and ensures silent operation.

Self-closing uses an integrated spring mechanism that activates when the drawer is pushed near the closed position. It pulls the drawer completely shut.

Push-to-open requires a gentle push on the drawer front to engage the mechanism. This extends the slides and opens the drawer without a handle.

Detent acts like a brake to prevent drawers from bouncing back open when closed with too much force.

Lever disconnect allows for easy removal of the entire drawer system with a simple lever release.

BHMA Grade 1 certification indicates the highest level of durability and performance for ANSI and BHMA standards.

ADA compliance means some undermount models meet ADA requirements with specific pull force for drawers.

How Do You Install a 20 Inch Full Extension Drawer Slide?

Proper installation requires attention to clearance and alignment.

20 inch full extension drawer rail

First, measure your drawer. The 20 inch slide is designed for drawer boxes that are approximately 20.5 inches long. Ensure the cabinet depth is at least 20 inches.

Second, check side clearance. For side mount slides, maintain a 0.5 inch gap between the drawer and the cabinet side wall on each side. Some heavy-duty slides require a larger clearance.

Third, mark screw positions. Use a level line inside the cabinet or measure from the bottom for consistent placement.

Fourth, follow the 3-part separation. Most 20 inch slides feature a 3-fold telescopic design. Install the outer member on the cabinet and the inner member on the drawer. Then slide the drawer onto the rails until the disconnect latch engages.

Fifth, use proper fasteners. Some undermount slides recommend specific screw sizes. They include disconnect levers and installation instructions.

Sixth, installation tip for undermount slides. Ensure the front locking device with multiple cleat design engages for a secure fit. For heavy-duty applications, check the specific side clearance requirements.

Where Should You Use a 20 Inch Full Extension Drawer Slide?

The drawer slide is ideal for numerous applications where larger drawers require full access.

For kitchen drawers, it is perfect for deep pot and pan drawers, utensil drawers, and large base cabinet drawers. For workshop and garage, it is ideal for tool chests, workbenches, and heavy equipment storage.

For office furniture, it is suitable for filing cabinets and large desk drawers. For van conversions and RVs, it is used for storage drawers in custom vehicle builds.

For industrial equipment, it is suitable for factory machines, commercial equipment, and retrofitted vehicles. For pull-out shelving, it converts standard shelving into accessible pull-out storage.

What Is BHMA Certification and Why Does It Matter?

BHMA certification is an important quality indicator for drawer slides. Grade 1 certification indicates the highest level of durability and performance. Slides are tested to withstand significant cycles of use.

Some premium brands offer BHMA Grade 1 certified 20 inch full extension slides. This ensures long-term reliability for demanding applications.

What Warranty Information Is Available?

Most premium brands offer comprehensive warranty coverage.

20 inch full extension drawer rail

Some brands offer a limited lifetime warranty. Others offer a manufacturer’s warranty. Always check the specific warranty terms for your chosen model.
