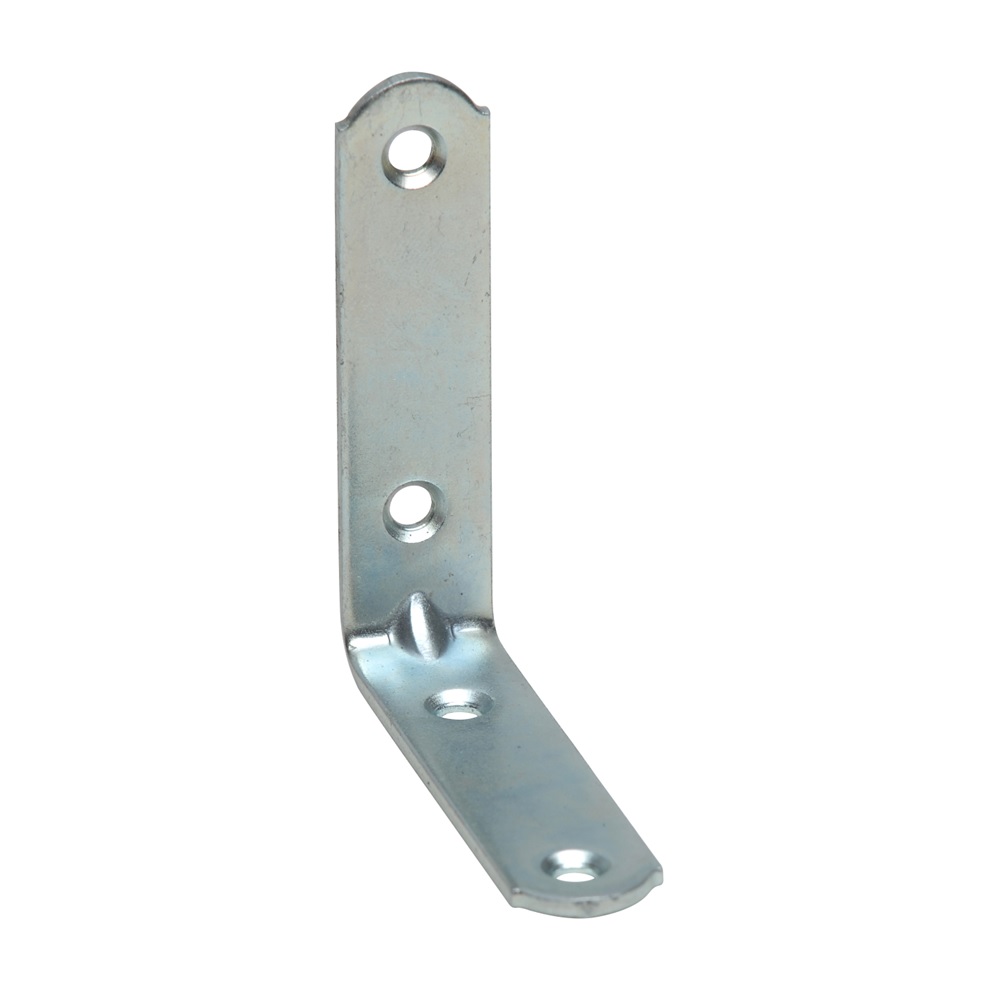

60 by 60 by 15 Angle bracket

Product Description

The 60 x 60 x 15 mm angle bracket is a light-duty L-shaped metal fastener. It is designed to reinforce 90-degree joints in furniture assembly, shelving, and timber construction projects.

This corner brace features leg lengths of 60 mm on each side, with a narrow 15 mm strip width. This allows installation in tight spaces where standard wider brackets would be impractical.

The compact, narrow profile makes this bracket ideal for applications such as reinforcing chair frames, securing shelving units, stabilising bookcases, and repairing wobbly furniture joints.

Whether you are a professional joiner or a DIY enthusiast, the angle bracket provides reliable support for light-duty structural connections.

60 by 60 by 15 Angle bracket

What Is the Difference Between the 60x60x15 and 60x60x40 mm Brackets?

A common question concerns the design specification.

The 60x60x15 mm bracket features a narrow 15 mm strip width. This makes it suitable for light-duty applications such as furniture assembly, picture frames, and small shelving units.

The bracket has a material thickness of 1.5 mm to 2 mm. This provides a balance between strength and ease of installation.

The overall size of 60 mm x 60 mm ensures adequate surface area for secure fastening. It remains compact enough for most furniture applications.

What Materials and Finishes Are Available?

Electro-Galvanised Steel:
This has a silver finish with good corrosion resistance. It is durable and best for indoor furniture, general DIY, and shelving.

Zinc-Plated Steel:
This has a bright finish and is economical. It is best for furniture reinforcement and light structural joints.

Blue Galvanised Steel:
This has a distinctive blue coating for additional protection. It is best for outdoor applications and high-humidity areas.

60 by 60 by 15 Angle bracket

White Zinc Plated:
This has a clean aesthetic with hot-dip zinc plating. It is best for visible applications and decorative furniture.

Stainless Steel:
This offers premium corrosion resistance with a marine-grade finish. It is best for outdoor, marine environments, and coastal areas.

What Are the Key Specifications of the 60x60x15 mm Bracket?

The angle bracket features pre-drilled holes for secure and easy fastening.

Typical hole diameter is 5 mm, with countersunk recesses to allow screw heads to sit flush with the bracket surface for a neat finish. Depending on the manufacturer, the bracket has 4 to 6 holes, with 2 to 3 holes per leg.

The material thickness is typically 1.5 mm or 2 mm. The bracket has a load capacity of up to 2.51 kN.

What Fasteners Should Be Used with This Bracket?

While the bracket itself comes ready to install, fixings are generally sold separately.

Recommended fasteners include ring shank nails, wood screws for timber-to-timber connections, and bolts with nuts for applications requiring additional strength.

The countersunk hole design allows screws to sit flush, preventing obstruction and providing a clean finish.

How Do You Install a 60 x 60 x 15 mm Angle Bracket?

Installation of the corner brace is straightforward and requires only basic tools.

First, position the bracket firmly against the inside corner of the two workpieces. Second, mark the screw hole locations with a pencil.

Third, pre-drill pilot holes into the wood to prevent splitting. Finally, secure using appropriate screws, tightening until the bracket is flush with both surfaces.

Use a minimum of one fastener in each outer corner. Distribute fasteners evenly across the bracket for optimal strength.

What Are the Typical Applications?

The angle bracket is versatile and suitable for numerous applications.

For furniture assembly, it reinforces chairs, tables, bookshelves, and cabinets. For shelving units, it secures shelf brackets and supports light to medium loads.

For timber joints, it stabilises corner joints in light timber structures and joinery work. For woodworking, it repairs wobbly furniture, picture frames, and drawers.

For PVC and panels, it is suitable for use on PVC, panels, and solid wood. For pergolas and canopies, it installs light structural elements such as pergolas and small canopies.

60 by 60 by 15 Angle bracket

What Pack Sizes Are Available?

These angle brackets are available in various pack quantities.

Multi-packs of 20 pieces are common for DIY enthusiasts and small projects. Individual pieces are available for single repairs or replacements. Bulk packs of 100 pieces are available for professional use and large-scale projects.

What Is the Weight of This Bracket?

The angle bracket is lightweight for easy handling. Typical weight is 20 grams per piece.
